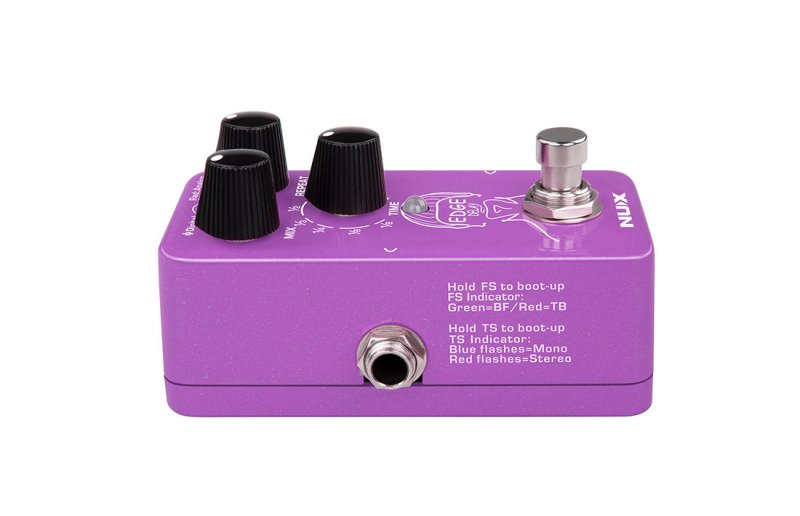

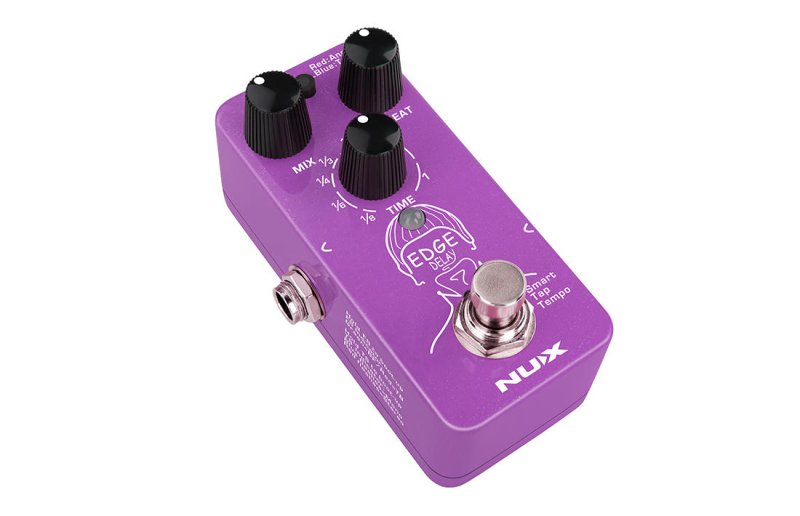

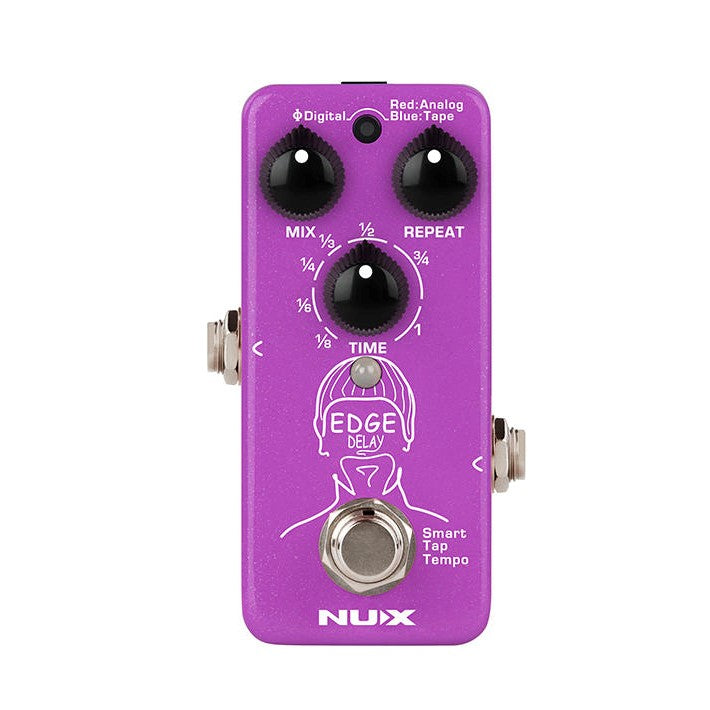

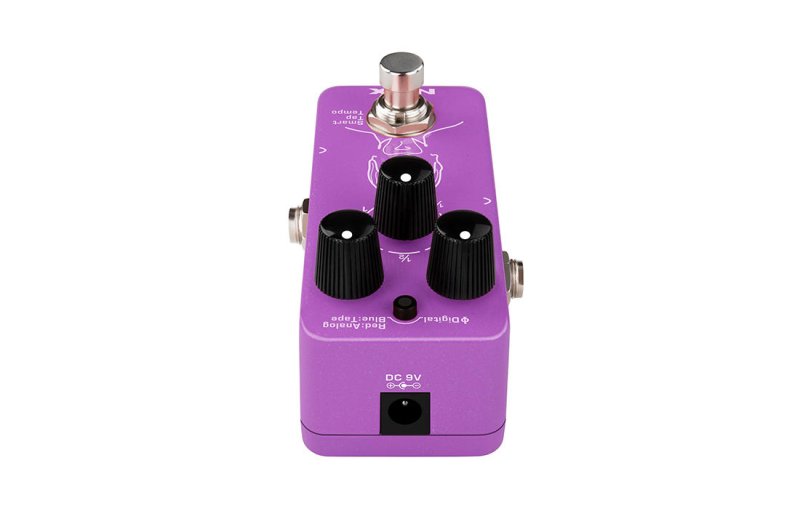

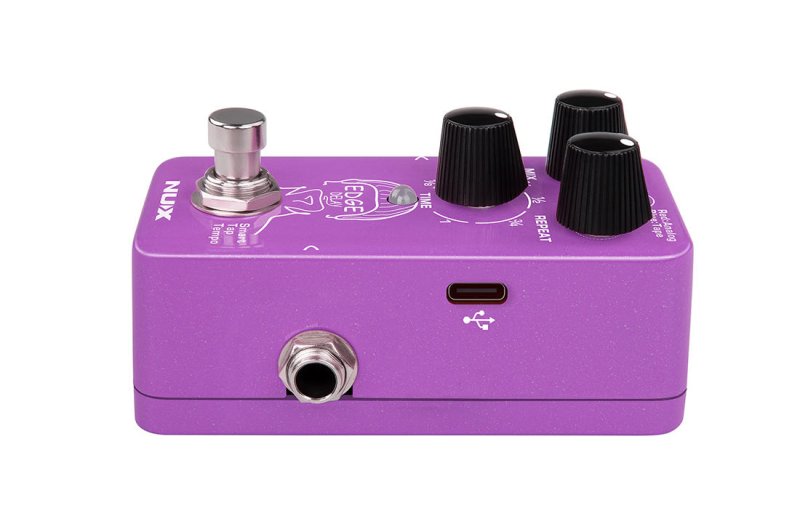

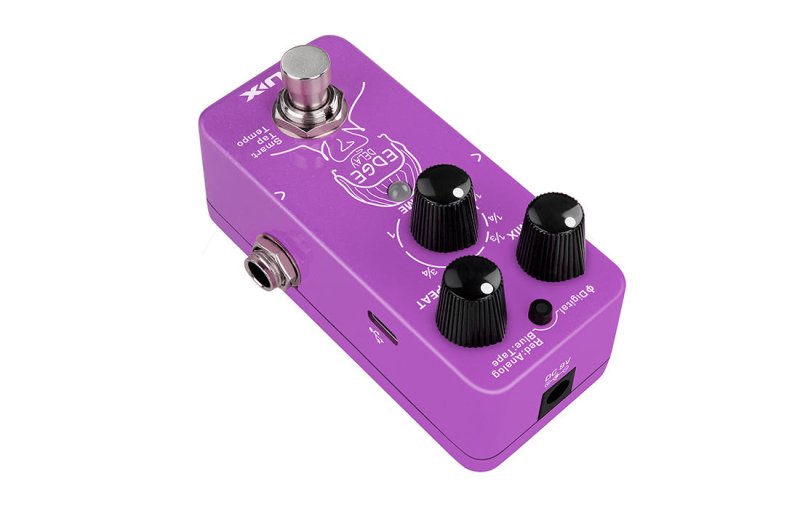

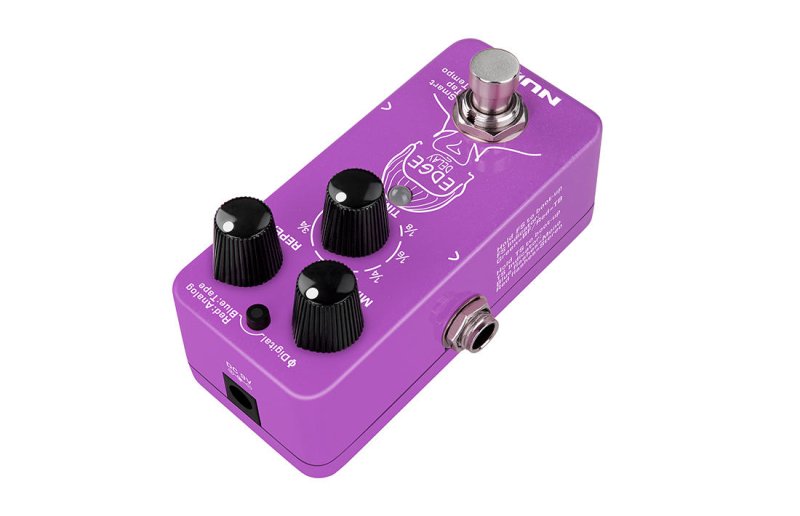

NUX - Edge Delay Mini Delay Effect Pedal #NDD-3

THE EDGE DELAY PROVIDES YOU WITH 3 UNIQUE DELAYS, EACH INCLUDING ACURATE CONTROL OVER ITS SONIC CHARACTER AND FEEL. CLEAR, STUDIO-QUALITY DIGITAL DELAYS. SATURATED AND FLUCTUATING SOUNDS OF TAPE DELAY MACHINES. WARM AND FUZZY ANALOG STYLE REPEATS.

Phi Digital Delay is a digital delay with a golden ratio 2nd repeat head. It makes your guitar sounds more musical in nature. Easily tweak the knobs, setup the desired sub-division, engage the smart tap tempo, and you’re ready to go.

Phi Digital Delay is a digital delay with a golden ratio 2nd repeat head. It makes your guitar sounds more musical in nature. Easily tweak the knobs, setup the desired sub-division, engage the smart tap tempo, and you’re ready to go.

Tape Echo is based on the legendary Space Echo machine. We digitally recreated the retro-feel of a real tape and capstan configuration. The Tape Echo emulates the high-frequency saturation and low-end decay of magnetic tape. It’s gently modulated for added richness and color. Tweak the time knob from max to min quickly, and you can get the infinity feedback.

SUB-DIVISION WITH SMART TAP TEMPO:

DELAY SUB-DIVISIONS WITH SMART TAP TEMPOSet the Time knob parameter to your desired sub-division, then you can engage the smart tap tempo by pressing the footswitch twice to get a dynamic sub-division tap tempo delay .

Press the footswitch once to engage/disengage the effect. Press twice, to access Smart Tap Tempo. In the meantime, the delay time is related to tap tempo and current sub-division parameter. (The FS indicator will flash as current BPM.)

Mini but mighty! It also supports Stereo input & output. (Use 1/4” TRS cable and choose Stereo mode.)

• 3 delay types in a mini enclosure.
• Phi Digital Delay: Musical digital delay with golden ratio 2nd repeat head.
• Analog Delay: BBD Warm sound with natural treble decay.
• Tape Echo: High-frequency saturation and low-end decay.
• Sub-division with Smart Tap Tempo. (Maximum: 1500ms)
• True-bypass or Buffer-bypass(Trails).
• Supports Stereo I/O with TRS Cable.
• Low power consumption. (less than 100mA)
• Analog dry signal for low noise and zero latency.
• Input Impedance:1MO
• Output Impedance:10kO
• Dynamic Range: 103 dB
• DSP Processing: 48KHz / 32-bit
• A/D D/A Sampling Rate: 48KHz / 24-bit
• Power:9V DC(Negative tip, Optional ACD-006A adapter)
• Current Draw:less than 100mA
• Dimensions:94(L)X51(W)X53(H)mm
• Weight:175g
