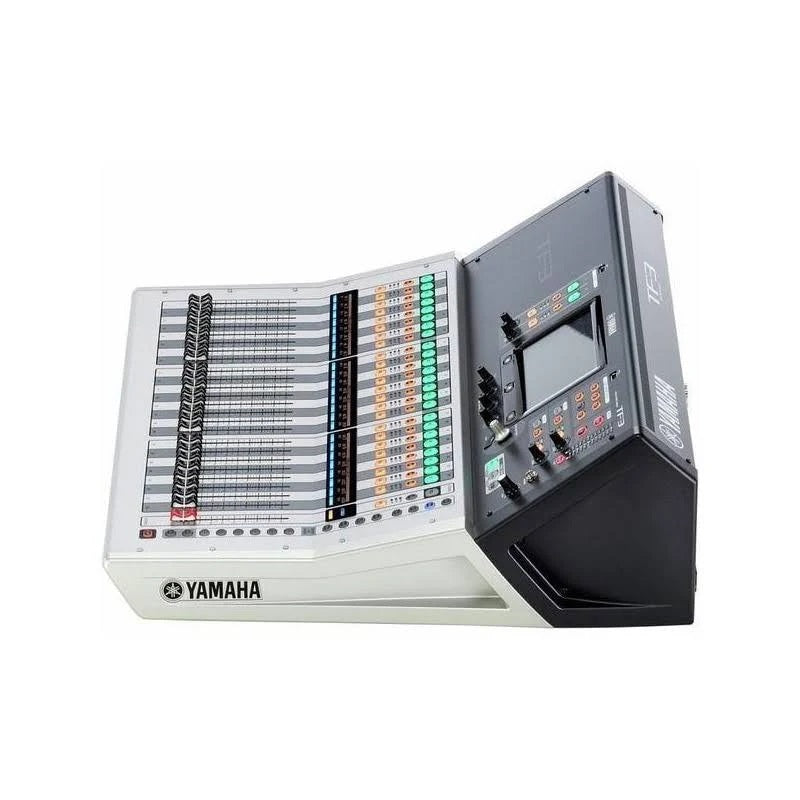

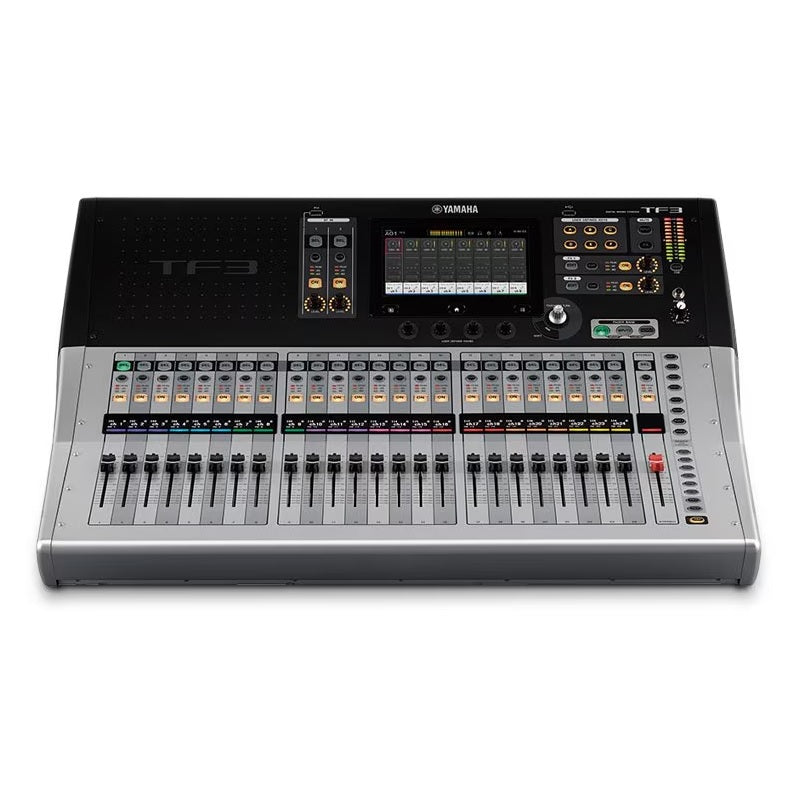

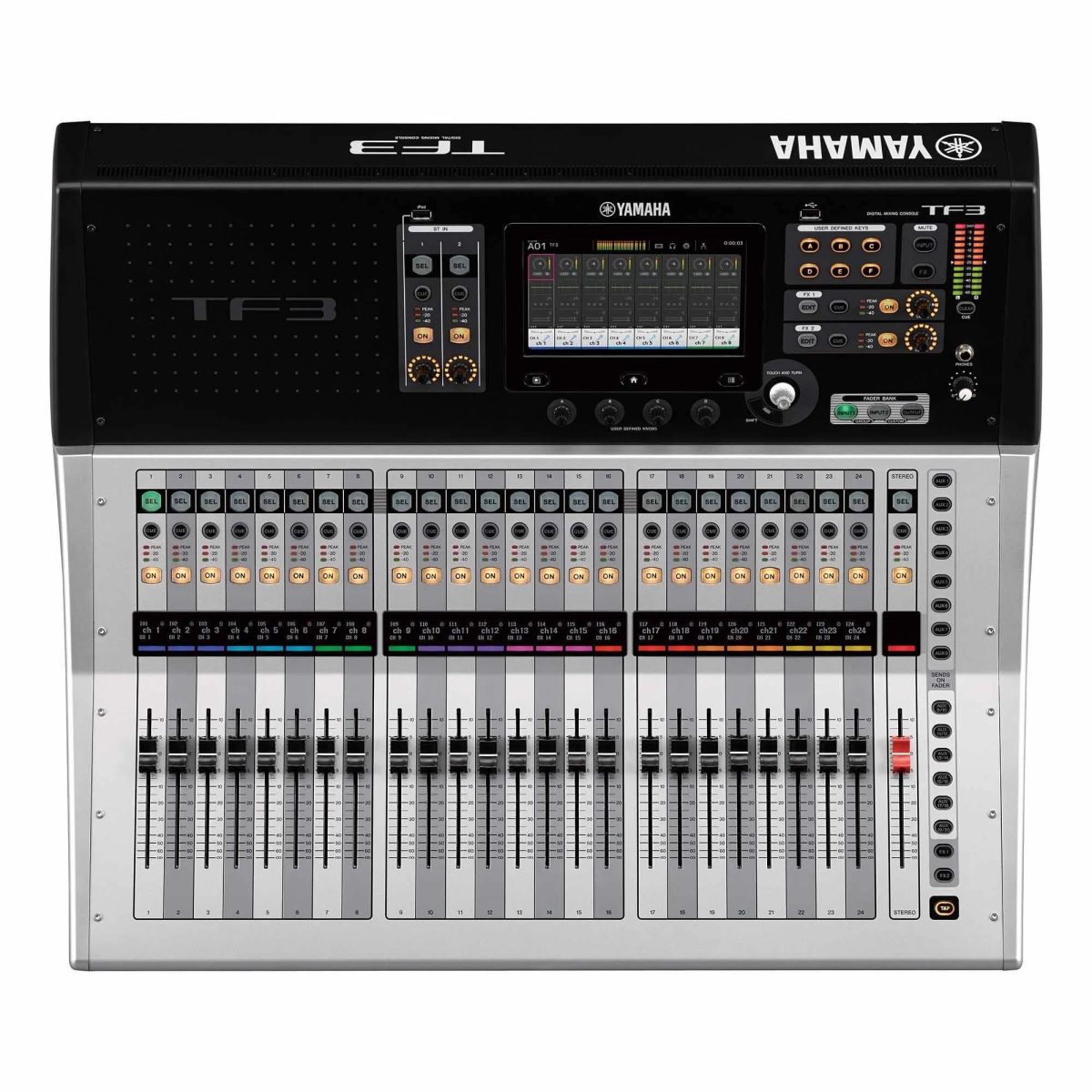

Yamaha - TF3 Console de mixage numérique
- 25 faders motorisés (24 pour les tranches d'entrées + 1 master)
- 48 canaux au mixage (40 mono + 2 stéréo + 2 retours d'effets)
- 20 Aux (8 mono + 6 stéréo) + bus stéréo + bus Sub
- 8 groupes de DCA avec fonction Roll-out
- 24 entrées analogiques micro/ligne XLR/TRS combo + 2 entrées analogiques RCA stéréo ligne
- 16 sorties analogiques en XLR
- 34 x 34 numériques record/playback via USB 2.0 + 2 x 2 via appareil de stockage USB
- 1 slot d'extension pour carte Dante NY64-D
Impossible de charger la disponibilité de la cueillette
Nous célébrons le lancement de notre nouveau site. Obtenez 20 $ de rabais à l'achat de 1 000 $ et plus. Le rabais est automatiquement appliqué au paiement.
Détails du produit
Détails du produit
Designed with care and crafted from premium materials, our products combine durability, comfort, and timeless style. Each piece is thoughtfully made to enhance your living space, offering a perfect balance of functionality and elegance that complements any home and suits your unique lifestyle.
Vos informations de paiement sont traitées de façon sécurisée. Nous ne conservons pas vos détails de carte de crédit et n'y avons pas accès.
Le design rencontre l'intuition
https://www.youtube.com/watch?v=BFNAmwI73Co
TF Series Specifications
TF5 |
TF3 |
TF1 |
||
Outline |
||||
Fader Configuration |
32 + 1 (Master) | 24 + 1 (Master) | 16 + 1 (Master) | |
Mixing Capacity |
Input Channels |
48 (40 mono + 2 stereo + 2 return) | 48 (40 mono + 2 stereo + 2 return) | 40 (32 mono + 2 stereo + 2 return) |
Aux Buses |
20 (8 mono + 6 stereo) | 20 (8 mono + 6 stereo) | 20 (8 mono + 6 stereo) | |
Stereo Buses |
1 | 1 | 1 | |
Sub Buses |
1 | 1 | 1 | |
Input channel functions |
8 DCA Groups | 8 DCA Groups | 8 DCA Groups | |

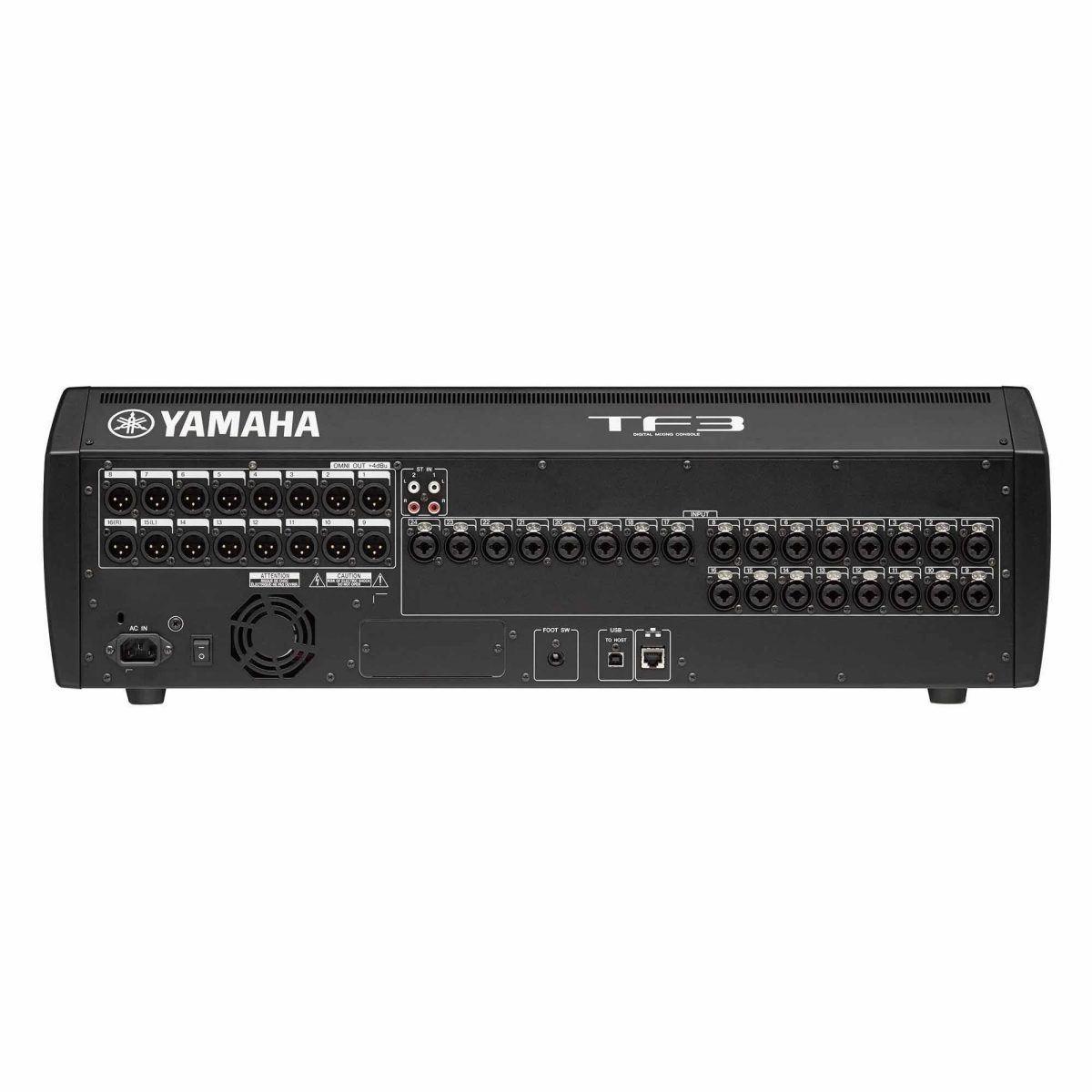

I/O |
Inputs |
32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) | 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) | 16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin) |
Outputs |
16 (XLR) | 16 (XLR) | 16 (XLR) | |
Expansion slots |
1 | 1 | 1 | |
On-board processors |
DSP |
8 Effects + 10 GEQ | 8 Effects + 10 GEQ | 8 Effects + 10 GEQ |
General specifications |
||||
Sampling frequency rate |
Internal |
48 kHz | 48 kHz | 48 kHz |
Signal delay |
Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz | Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz | |
Fader |
100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders | 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders | 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders | |
Total harmonic distortion |
Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) | Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) | Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) | |
Frequency response |
+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT | +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT | +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT | |
Dynamic range |
110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. | 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. | 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min. | |
Hum & noise level |
Equivalent input noise |
–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) | –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) | –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter) |
Residual output noise |
–85 dBu, ST master off (Measured with an A-Weight filter) | –85 dBu, ST master off (Measured with an A-Weight filter) | –85 dBu, ST master off (Measured with an A-Weight filter) | |
Crosstalk |
–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. | –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. | –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min. | |
Power requirements |
100–240 V 50/60 Hz | 100–240 V 50/60 Hz | 100–240 V 50/60 Hz | |
Power consumption |
120 W | 110 W | 100 W | |
Dimensions |
W |
866 mm (34.1in) | 716 mm (28.2in) | 510 mm (20.1in) |
H |
225 mm (8.9in) | 225 mm (8.9in) | 225 mm (8.9in) | |
D |
599 mm (23.6in) | 599 mm (23.6in) | 599 mm (23.6in) | |
Net weight |
20.0 kg (44.1lb) | 17.0 kg (37.5lb) | 13.5 kg (29.8lb) | |
Accessories |
Quick Guide, Power Cord, Nuendo Live | Quick Guide, Power Cord, Nuendo Live | Quick Guide, Power Cord, Nuendo Live | |
Options |
Expansion Card, Foot Switch (FC5) | Expansion Card, Foot Switch (FC5) | Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5) | |
Others |
Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C | Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C | Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C |
Recording/Playback
| PC/Mac (USB2.0) | Recording 34 tracks, Playback 34 tracks |
| USB Storage Device | Recording 2 tracks (USB hard drive/ SSD) *, Playback 2 tracks (USB hard drive/ SSD/ thumb drive) |
Analog Input Characteristics
*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.) *2. 1: GND, 2: HOT, 3: COLD *3. Tip: HOT, Ring: COLD, Sleeve: GND *4. In these specifications, 0dBu = 0.775Vrms. *5. +48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.Analog Output Characteristics
*1. 1: GND,2: HOT, 3: COLD *2. Tip: LEFT, Ring: RIGHT, Sleeve: GND *3. In these specifications, 0dBu = 0.775Vrms. *4. All output DA converters are 24bit, 128times oversampling. *5. The position of the level control is lowered by 16dB from the maximum.Digital Input/Output Specifications
Terminals |
Format |
Data Length |
Audio |
Connector |
| USB (TO HOST) | USB | 24bit | 34ch input / 34ch output, PCM | USB (B type) |
| iPad | USB | - | Playback: MP3 or WAV file data / Record: WAV file data | USB (A type) |
Control I/O Specifications
Terminals |
Format |
Level |
Connector |
| NETWORK | IEEE802.3 | 10BASE-T/100Base-TX | RJ-45 |
| FOOT SW | - | - | TS Phone |
